Ocean Simulator

Brennan Andruss

Description

The Ocean Simulator is a procedurally generated ocean simulation made using C++ and OpenGL for CSC 471: Introduction to Computer Graphics. The goal of this project was to create an ocean simulation with dynamic wave generation with the sum of sines and buoyancy support for game objects, diving into deeper mathematics and algorithms.

An additional goal was to delve into systems and graphics programming by implementing the OpenGL base code from scratch and implementing abstractions for ease of use in initializing and creating scenes. This involved exploring the inner-workings of OpenGL and learning some more advanced concepts in C++ and OpenGL / GLSL.

Procedural Mesh

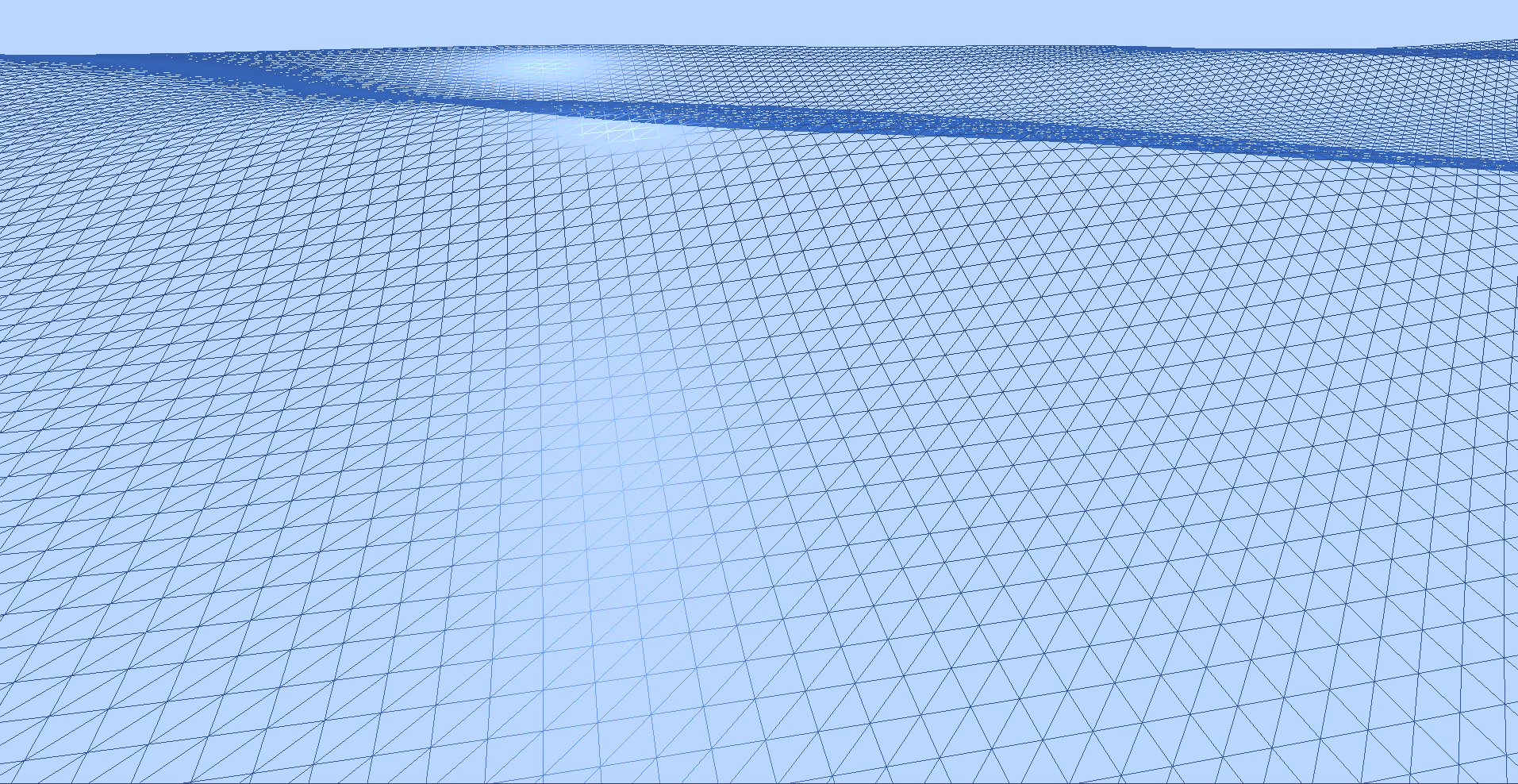

The underlying plane for the water mesh is generated procedurally, with parameters to customize the size of the plane and the resolution of the plane, which sets the density of triangles making up the surface. Creating the plane involves creating a grid of vertices with positions and texture coordinates to attach to a vertex buffer object and then triangulating the grid by assigning indices to attach to an element buffer object.

Wave Generation

To support both displacement of the plane vertices on the GPU and the ability to query the displacement at any position on the CPU for buoyancy, all the waves are generated on the CPU. Waves parameters are set with random distributions and a seeded generator, and those parameters are packed into a struct and sent to the GPU through a uniform buffer object, which is used for passing large amounts of uniform variables. Wave parameters include amplitude, frequency, phase constant, and a direction vector. The phase constant is multiplied by time to enable animation, with time being updated and passed as a uniform to the shader each frame.

\[ W_i(x, z, t) = A_i \times \sin\left( \mathbf{D}_i \cdot \begin{bmatrix} x \\ z \end{bmatrix} \times w_i + t \times \phi_i \right) \]

Any kind of sine function can be used for the waves, so using different sine functions can create different waves shapes. For a simple steep sine function with sharper wave peaks and wider troughs, a steepness parameter 'k' is added to the wave struct.

\[ W_i(x, z, t) = 2A_i \times \left( \frac{\sin\left( \mathbf{D}_i \cdot \begin{bmatrix} x \\ z \end{bmatrix} \cdot w_i + t \cdot \phi_i \right) + 1} {2} \right) ^ k \]

Sum of Sines

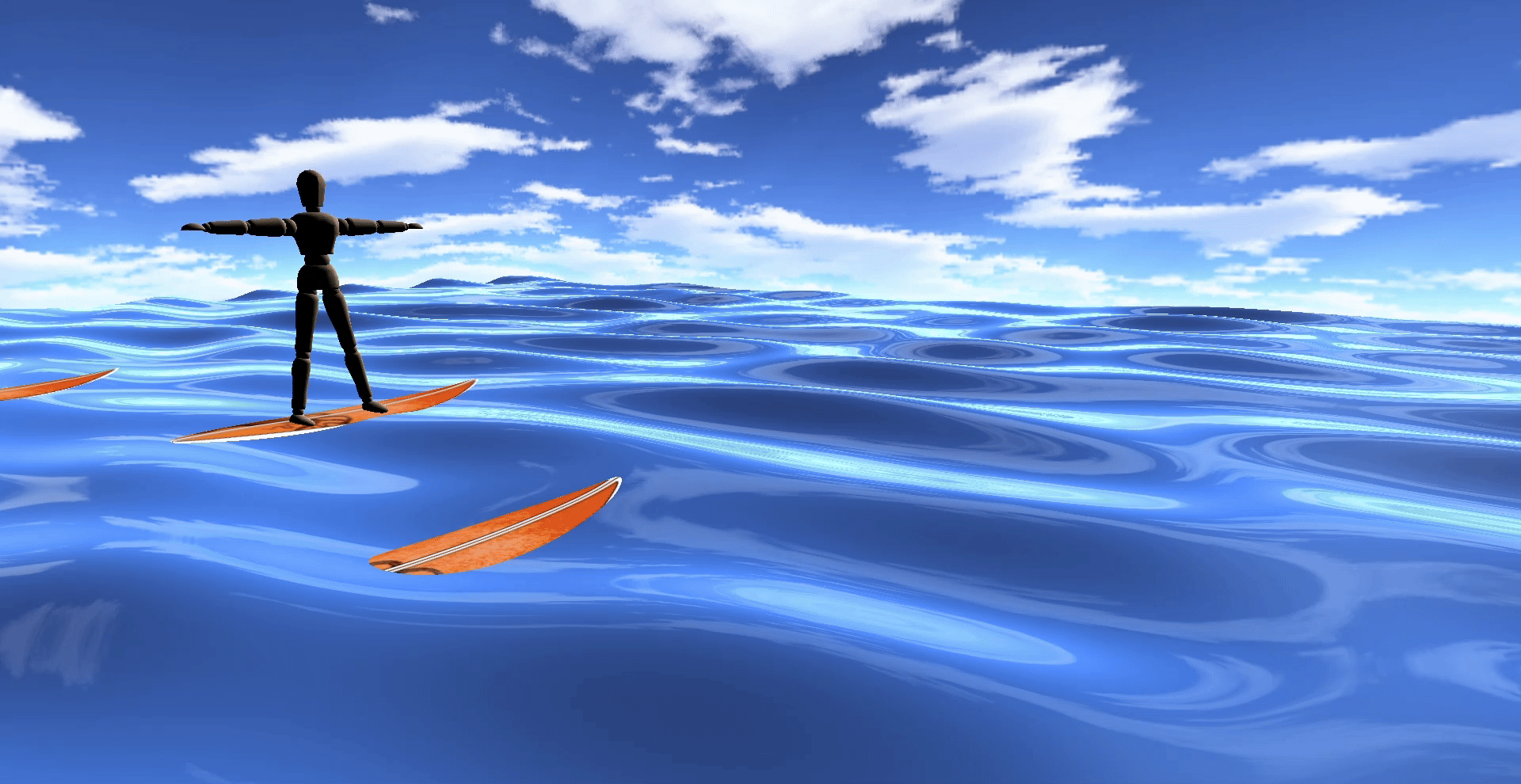

The sum of sines method is implemented to displace vertices in the vertex shader. Adding together a number of random sine waves effectively creates noise, which happens to resemble the surface of an ocean under certain initial conditions of the wave parameters. The vertex shader loops through each wave at each vertex on the water mesh and sums up the value of the sine function at the given position and point in time.

\[ H(x, z, t) = \sum_{}^{} (W_i(x, z, t)) \] \[ \mathbf{P}(x, z, t) = \left(x, H(x, z, t), z \right) \]

Surface Normals

For general surfaces with unknown normals, the normals at each vertex can be calculated by averaging the face normals of the adjacent faces, which is a finite-difference technique. This would involve multiple more summations to get the positions of neighboring vertices.

However, because the surface has an explicit function, the normals can be calculated at any given point directly. Binormal and tangent vectors can be obtained from the partial derivatives in the x and z directions, respectively, and then crossed to derive the normal vector.

\[ \mathbf{T}(x, z) = \frac{\partial }{\partial x}(\mathbf{P}(x, z, t)) \] \[ \mathbf{B}(x, z) = \frac{\partial }{\partial z}(\mathbf{P}(x, z, t)) \] \[ \mathbf{N}(x, z) = \mathbf{B}(x, z) \times \mathbf{T}(x, z) \]

These partial derivatives can be calculated in the same loop as the sum of sines displacements, since the derivative of a sum is the sum of the derivatives. The vertex shader does all the summations for displacement and partials and then derives the normal vector with the summed partials before passsing data through to the fragment shader for lighting.

\[ \frac{\partial }{\partial x}(H(x, z, t)) = \sum_{}^{} (\frac{\partial }{\partial x}(W_i(x, z, t))) \]

Buoyancy

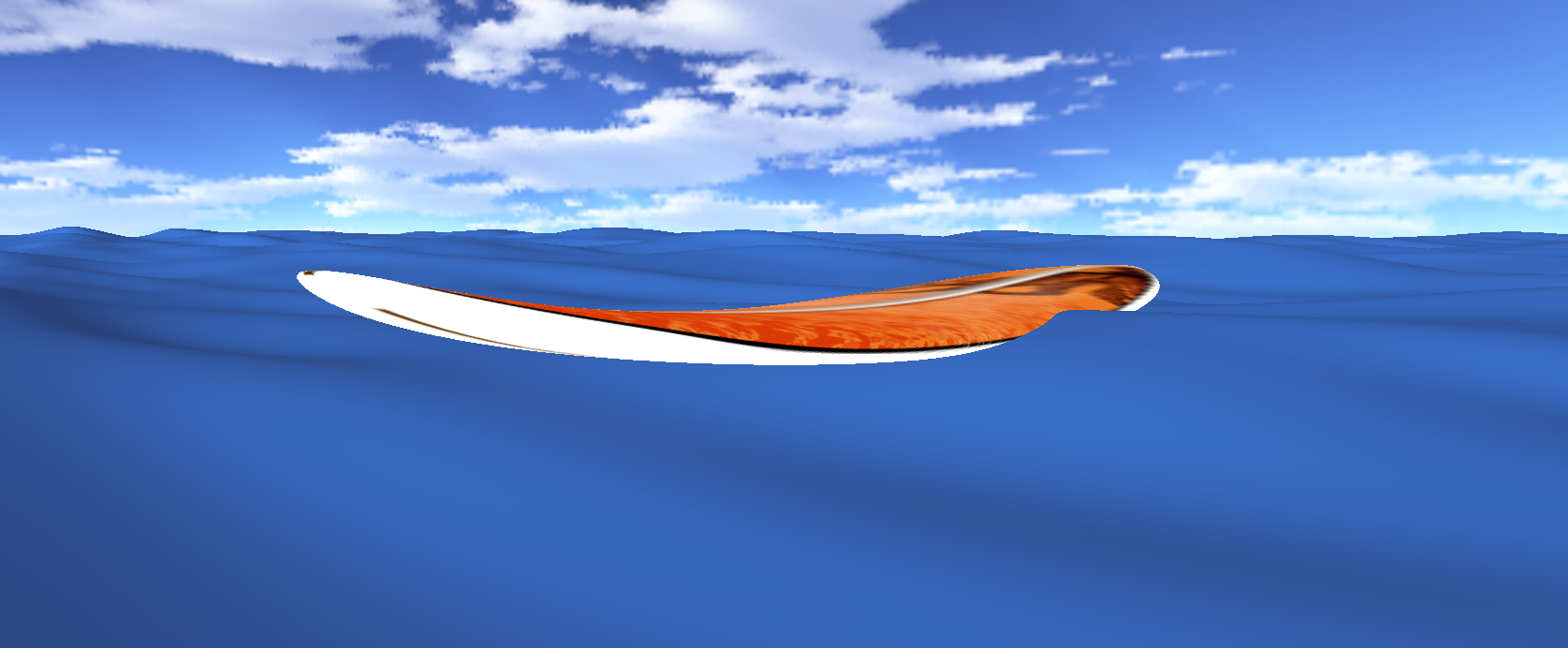

To fake buoyancy physics, I matched the height of my models to the water by querying the displacement at their positions, using the same sum of sines calculations as the vertex shader but for a single position. With some adjustments, this same logic can also be used to query the surface normal and apply a rotation to the model so that it matches the orientation of the waves.

Game Objects

To abstract and reuse the process of configuring materials and transformation matrices when drawing, I created a bare-bones implementation of Unity's GameObject class. Each GameObject contains a transform struct, a material struct holding shader and texture information, and a mesh struct holding the vertex data. Each of these structures can be created or attached as pointers during initialization, and then the GameObject will handle configuration by obtaining a model matrix and setting the appropriate shader uniforms before making the draw call to OpenGL.

Hierarchies

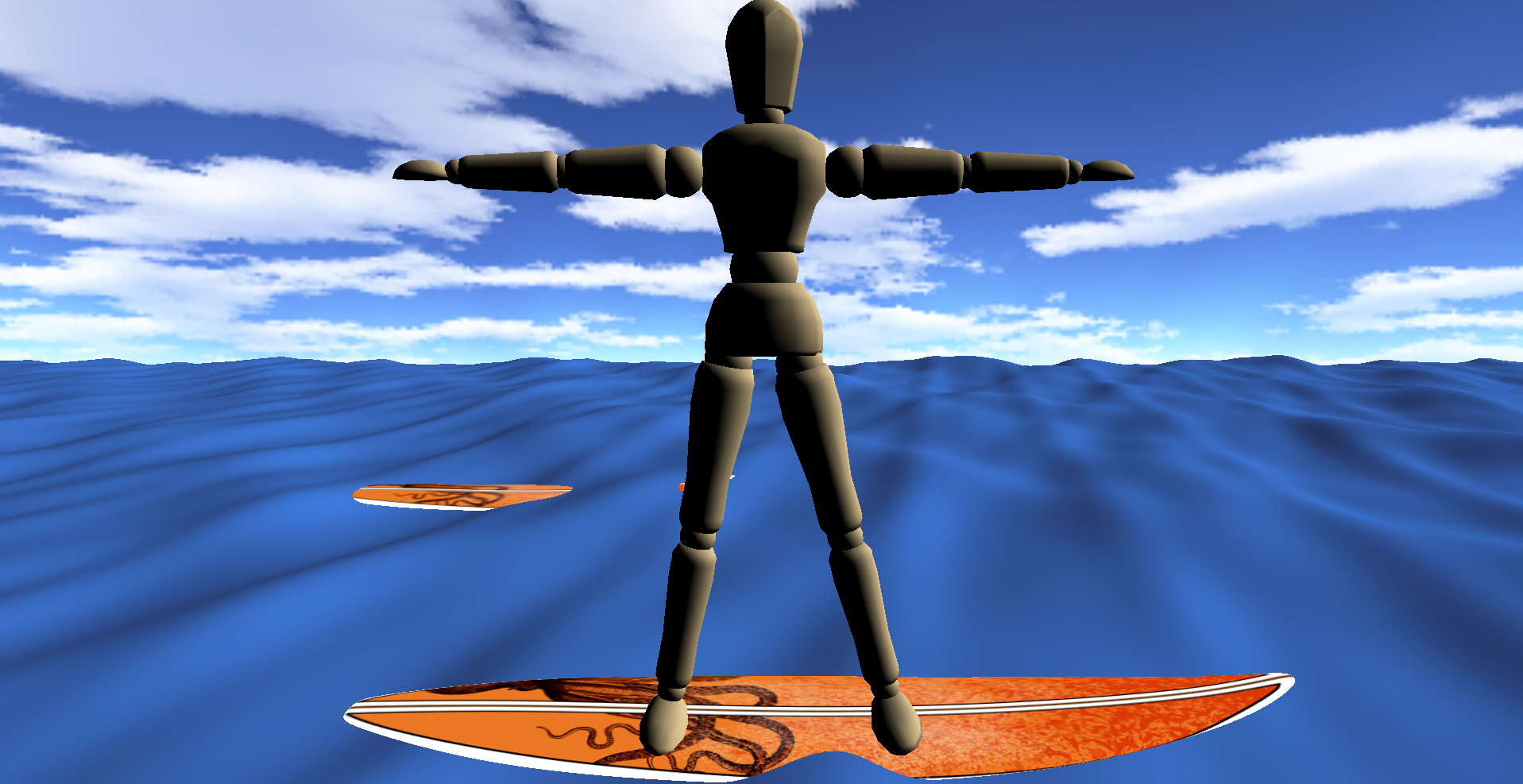

To handle multi-shape meshes, I implemented a hierarchy of GameObjects using a tree data structure, with the creation of the hierarchy being handled during initialization. Drawing the hierarchy will recursively traverse the tree, making draw calls on each GameObject and passing down its transform component to the children GameObjects with each depth of recursion. This process implicitly creates the matrix stack needed for hierarchical modeling, abstracting away the manual creation of the stack and allowing you to pose models by simply adjusting transform values at the joints.

Beyond hierarchical models, a hierarchy can be created containing all the GameObjects in the scene so that nearly the entire scene can be rendered with a single call to the scene hierarchy.

Camera

Taking more inspiration from Unity, I implemented its flythrough camera for my program, supporting acceleration-based movement in all six directions along the camera's basis vectors. Rotation is handled with cursor movement in the window, and the window traps the cursor when it is clicked to enable unbounded rotations in any direction (within pitch constraints).

The camera class also takes advantage of uniform buffer objects. UBOs exist in shared GPU memory, so since everything in the scene uses the same perspective and view matrices, we can effectively turn them into global uniform variables. The camera can set them once at initialization and update them as needed in one place, and those transformation matrices will be available to all shaders by accessing the buffer's binding point. The class can be responsible for managing the view matrix whenever it moves along with the perspective matrix whenever the window resizes or the camera zooms.

Resources

Acerola
How Games Fake Water

  • Main inspiration and resource for the project

    • GPU Gems (by NVIDIA)
    Effective Water Simulation from Physical Models

  • Primary source for the sum of sines technique and the math involved

    • Catlike Coding
    Procedural Grid

  • A previous tutorial I followed to procedurally generate a square grid

    • LearnOpenGL
    Advanced GLSL
    Advanced Data
    The "Getting Started" Series

  • The tutorials I followed to learn the machinery behind OpenGL and GLSL

    • Source Code: OceanSim
